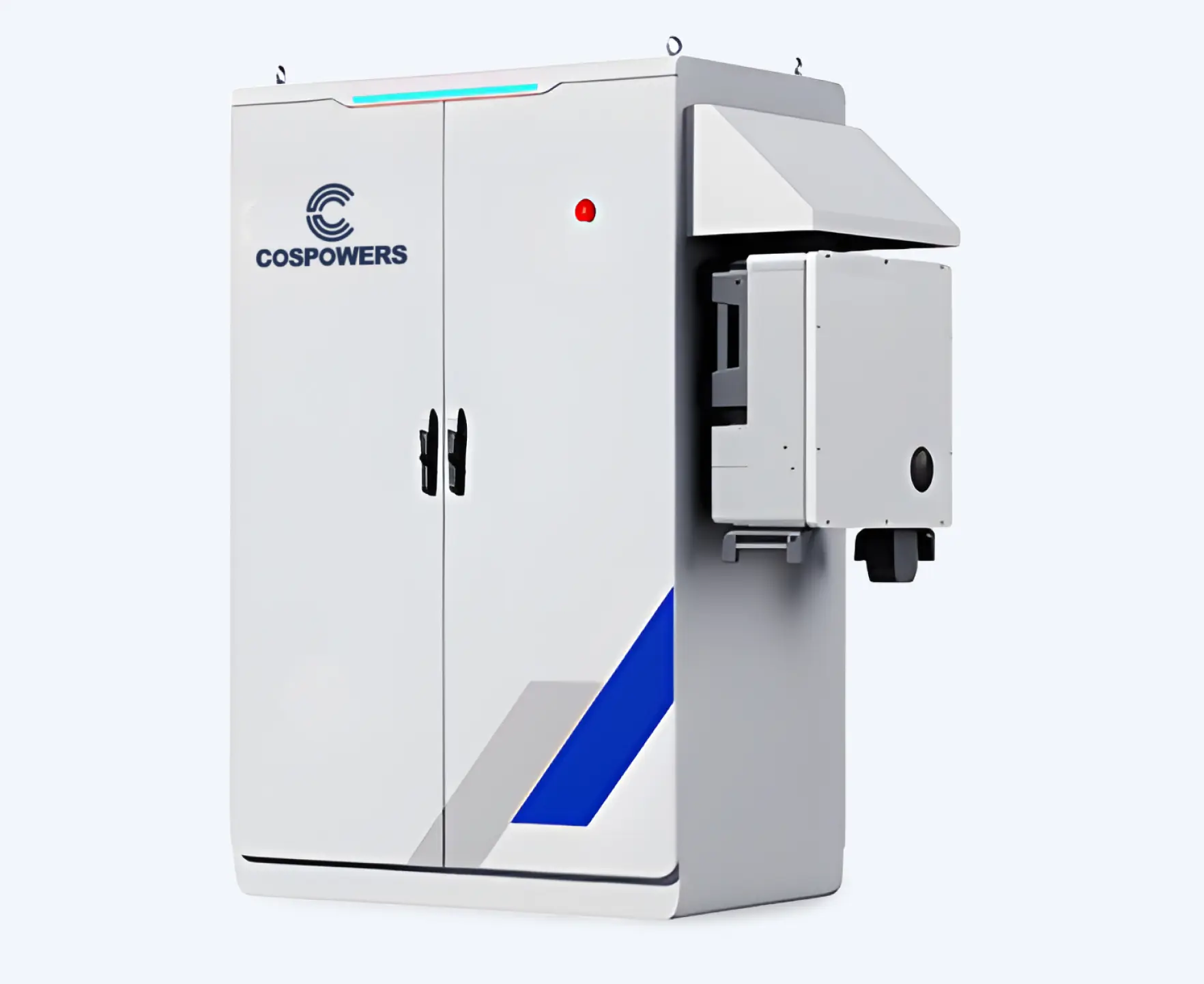

CP Astra: Up to 102kWh Air Cooled Battery Storage

Store up to 102kWh with air cooling. Ideal for EV charging, office buildings, and agriculture. Features integrated AC/DC design and cloud maintenance.

Storage Capacity: Up to 102kWh
Cooling Technology: Advanced air cooling
Design: Highly integrated AC and DC systems
Safety: Safe and reliable 1+1 redundancy design

Technical Details

50kW/102kWh OUTDOOR HYBRID SOLARENGERGY STORAGE SYSTEM

PV Input Parameters

Maximum Input Voltage: 1000Vdc
MPPT voltage range: 300~750Vdc
Rated power: 75kW
MPPT quantity: 3

AC grid connection parameter

Maximum input apparent power: 55kVA
Maximum input active power: 50kW
Rated input voltage: 220/400V,3/N/PE
Maximum continuous input current: 72A
Rated input frequency: 50/60Hz

AC off-grid parameter

AC off-grid voltage: 220/400V,3/N/PE
Maximum continuous output current: 72A
AC off-grid frequency: 50/60Hz

Battery parameters

Battery Type: LFP
Rated capacity: 102kWh
Nominal voltage: 512V
Operating voltage range: 448~560V
Charge/Discharge Rate: ≤0.5C
Battery string: 2 channel
Maximum charging current: 50A*2

System parameters

HMI: 8 inch LCD touch screen
Fire protection system: Perfluorhexone fire protection
Cooling Method: Air cooling
Operating temperature: 0℃~55℃
IP Class: IP54
Size: <1250*810*1850mmmm
Weight: <1500Kg
