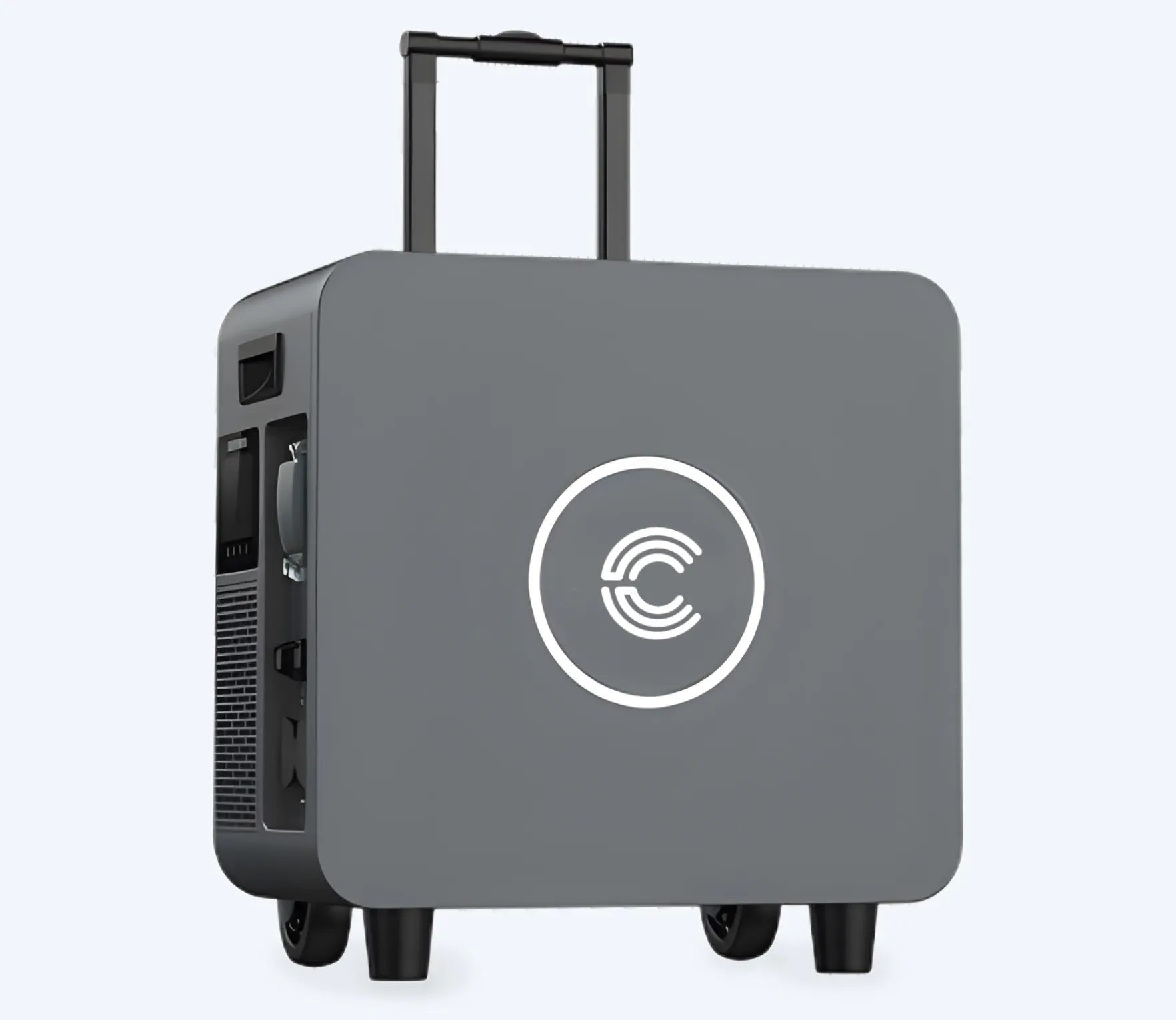

CP Jupiter: Portable Battery Storage for Home

  • Extreme simple appearance design, elegant and beautiful
  • Draw-bar box design, easy to move, plug and play, simple operation
  • Multiple electrical protection, safe and reliable, adopting LFP cells, safe and stable
  • Possess ISO/Android. App to monitor
  • Built-in 5.12kWh batteries, with long-term power supply
  • Multiple functions of AC power source socket, with convenient usage
  • Multiple power supply modes, green energy, supporting solar power charge and mains charge
  • With multiple operating modes, it meets the requirements of different application scenarios
    • Get the brochure
    Contact us

    Technical Details

    CR5000-5

    AC Input Parameters

    • AC input range: UPS grid mode: 170V-280V; APL generator mode: 90V-280V
    • AC input frequency: 50/60Hz
    • AC max charge current: 60A (0~60A settable)

    PV Input Parameters

    • Recommended PV max power: 4400W
    • Open-circuit voltage: 145V
    • MPPT Voltage Range: 60V~115V
    • Charge current: 80A

    Battery Parameters

    • Rated voltage: 51.2V
    • Voltage Range: 45~57.6V
    • Energy: 5120Wh
    • Standard Charge/Discharge Current: 0.25C/0.5C
    • Max Charge/Discharge Current: 0.5C/1C

    AC Output Parameter

    • Battery Type: LFP
    • Rated Power: 5000W
    • Surge Power: 10000VA
    • Output voltage: 220/230/240Vac
    • Output current: 22A
    • Rated Frequency: 50/60Hz
    • Voltage harmonic: < 3%

    Working Conditions

    • Output Waveform: Pure sine wave
    • Output method: AC Socket×2
    • Operating temperature range: 0~55℃
    • Storage temperature range: -15℃~60℃
    • Humidity: 5%~95%
    • Cooling Method: Air cooling
    • Weight: 66kg
    • Size: 540*532*316mm
    • IP Class: IP20
    • Installation method: Portable type
    • Communication port: RS485/WIFI
