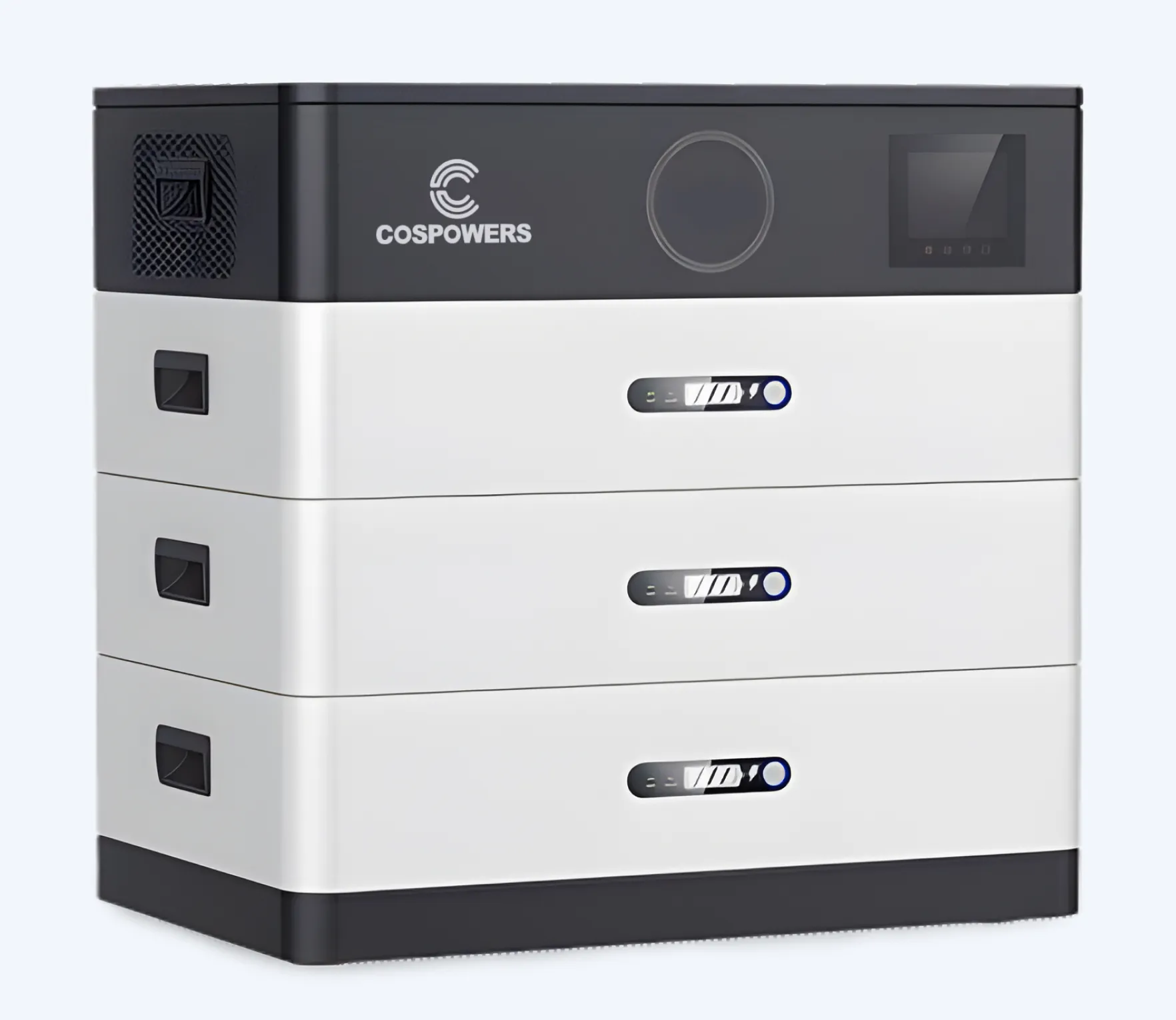

CP Oak L: Stacked Battery Storage for Home

Homely style, elegant and beautiful. Single-phase European standard and single-phase American standard design, supporting multi-system grid voltage standards. Multiple working modes (photovoltaic priority, mains priority, inverter priority). Simple installation and maintenance, the customized design meets the requirements of different customers. Possess ISO/Android. App to monitor. Single battery 5.12kWh, expandable up to 20.48KWh. Multiple protection and alarm system, safe and reliable.

  • Homely style, elegant and beautiful
  • Single-phase European and American standard design
  • Multiple working modes (photovoltaic priority, mains priority, inverter priority)
  • Simple installation and maintenance
  • ISO/Android app monitoring
  • Single battery 5.12kWh, expandable up to 20.48kWh
  • Multiple protection and alarm system, safe and reliable
Get the brochure
Contact us

Technical Details

CS5000-5-P

Grid Input Parameters:

  • Grid max charge current: 60A
  • Rated input voltage: 220V/230V/240V
  • Input Voltage Range: UPS grid mode170280V; APL generator mode90V280
  • Frequency: 50/60Hz
  • Conversion time (bypass and inverter): 10ms
  • Maximum bypass overload current: 40A

Solar Energy Input Parameters:

  • PV Open-circuit voltage: 145V
  • PV Operating voltage range: 60~145V
  • MPPT voltage range: 60~115V
  • Max PV input current: 50A
  • Max input power: 4400W
  • PV Max charge current: 80A

AC Output Parameters:

  • Output voltage waveform: Pure sine wave
  • Rated output voltage: 230A (220/240A)
  • Output frequency range: 50/60Hz±0.3Hz

Battery Parameters:

  • Rated voltage: 51.2V
  • Voltage Range: 45~57.6V
  • Energy: 5.12kWh
  • Standard Charge/Discharge Current: 0.25C/0.5C
  • Max. Charge/Discharge Current: 0.5C/1C
  • Battery Type: LFP
  • Operating temperature range: 0~45℃
  • Storage temperature range: -15℃~60℃
  • Humidity: 5%~95%
  • Cooling Method: Air cooling
  • Weight: 87Kg

Working Conditions:

  • Size: 650*440*345mm
  • IP Class: IP20
  • Installation method: On Floor
  • Communication port: RS485/WIFI

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5
Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

  1. Item 1
  2. Item 2
  3. Item 3

Unordered list

  • Item A
  • Item B
  • Item C

Text link

Bold text

Emphasis

Superscript

Subscript

CS5000-15-P

Grid Input Parameters:

  • Grid max charge current: 60A
  • Rated input voltage: 220V/230V/240V
  • Input Voltage Range: UPS grid mode170280V; APL generator mode90V280
  • Frequency: 50/60Hz
  • Conversion time (bypass and inverter): 10ms
  • Maximum bypass overload current: 40A

Solar Energy Input Parameters:

  • PV Open-circuit voltage: 145V
  • PV Operating voltage range: 60~145V
  • MPPT voltage range: 60~115V
  • Max PV input current: 50A
  • Max input power: 4400W
  • PV Max charge current: 80A

AC Output Parameters:

  • Output voltage waveform: Pure sine wave
  • Rated output voltage: 230A (220/240A)
  • Output frequency range: 50/60Hz±0.3Hz

Battery Parameters:

  • Rated voltage: 51.2V
  • Voltage Range: 45~57.6V
  • Energy: 15.36kWh
  • Standard Charge/Discharge Current: 0.25C/0.5C
  • Max. Charge/Discharge Current: 0.5C/1C
  • Battery Type: LFP
  • Operating temperature range: 0~45℃
  • Storage temperature range: -15℃~60℃
  • Humidity: 5%~95%
  • Cooling Method: Air cooling
  • Weight: 187Kg

Working Conditions:

  • Size: 650*440*765mm
  • IP Class: IP20
  • Installation method: On Floor
  • Communication port: RS485/WIFI

CS5000-20-P

Grid Input Parameters:

  • Grid max charge current: 60A
  • Rated input voltage: 220V/230V/240V
  • Input Voltage Range: UPS grid mode170280V; APL generator mode90V280
  • Frequency: 50/60Hz
  • Conversion time (bypass and inverter): 10ms
  • Maximum bypass overload current: 40A

Solar Energy Input Parameters:

  • PV Open-circuit voltage: 145V
  • PV Operating voltage range: 60~145V
  • MPPT voltage range: 60~115V
  • Max PV input current: 50A
  • Max input power: 4400W
  • PV Max charge current: 80A

AC Output Parameters:

  • Output voltage waveform: Pure sine wave
  • Rated output voltage: 230A (220/240A)
  • Output frequency range: 50/60Hz±0.3Hz

Battery Parameters:

  • Rated voltage: 51.2V
  • Voltage Range: 45~57.6V
  • Energy: 20.48kWh
  • Standard Charge/Discharge Current: 0.25C/0.5C
  • Max. Charge/Discharge Current: 0.5C/1C
  • Battery Type: LFP
  • Operating temperature range: 0~45℃
  • Storage temperature range: -15℃~60℃
  • Humidity: 5%~95%
  • Cooling Method: Air cooling
  • Weight: 237Kg

Working Conditions:

  • Size: 650*440*765mm
  • IP Class: IP20
  • Installation method: On Floor
  • Communication port: RS485/WIFI
