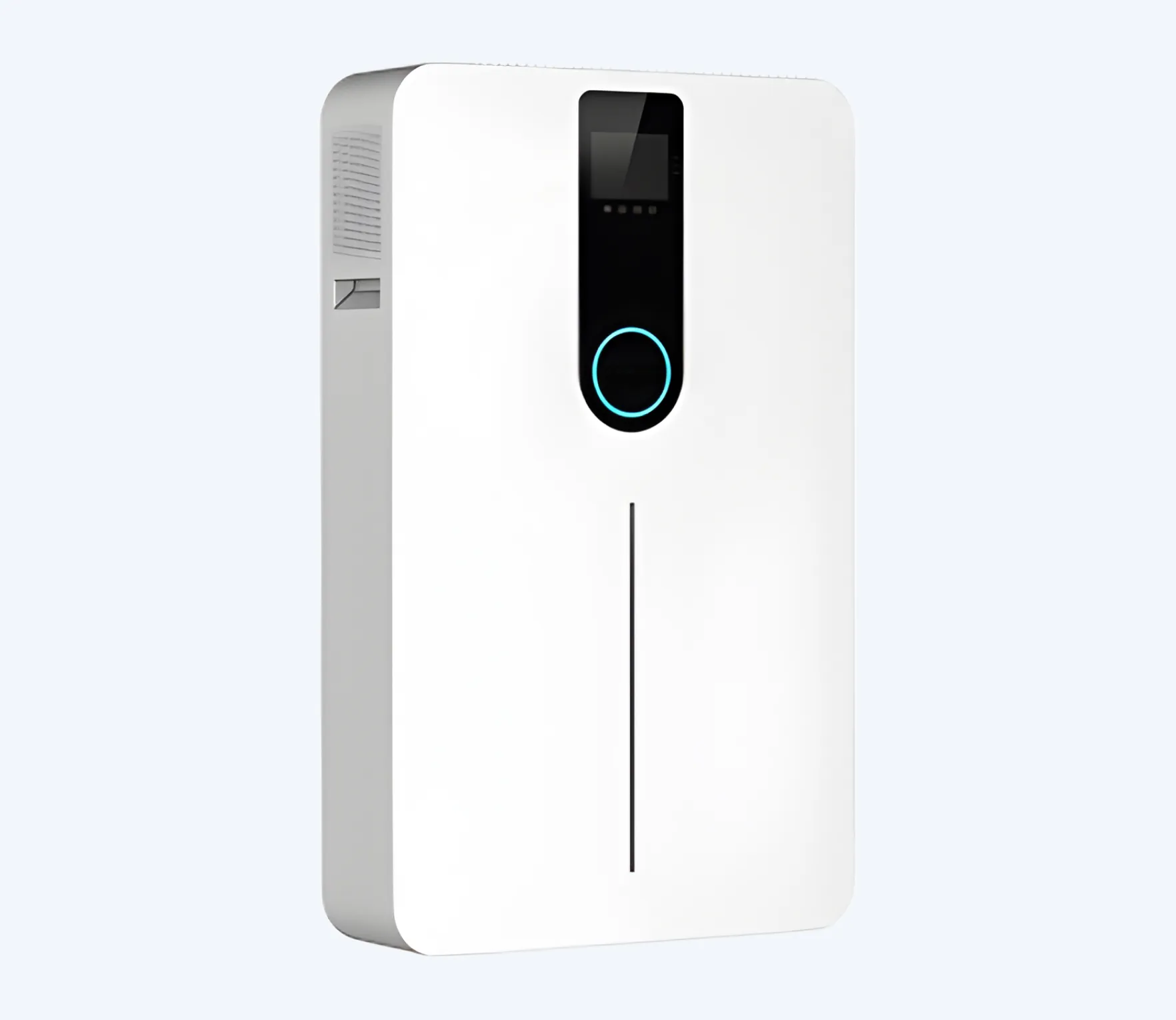

Elegant wall battery storage for home use. Supports multiple grid voltage standards and working modes. Easy installation, ISO/Android app monitoring, and robust protection system.
Design: Homely style, elegant and beautiful
Compatibility: Single-phase European and American standard design, supports multi-system grid voltage standards
Modes: Multiple working modes (photovoltaic priority, mains priority, inverter priority)
Ease of Use: Simple installation and maintenance, customizable design
Monitoring: Possess ISO/Android app monitoring
Safety: Multiple protection and alarm systems for reliability
AC input range: UPS grid mode:170-280;APL generator mode:90-280
AC input frequency: 50/60Hz (Automatic detection)
AC max charge current: 60A
PV Input Parameters
Recommended PV max power: 4400W
Open-circuit voltage: 145V
MPPT Voltage Range: 60V~115V
Max Charge Current: 80A
Battery Parameters
Rated voltage: 51.2V
Voltage Range: 45~57.6V
Energy: 5120Wh
Standard Charge/Discharge Current: 0.25C/0.5C
Max. Charge/Discharge Current: 0.5C/1C
Battery Type: LFP
AC Output Parameter
Rated Power: 5000W
Surge Power: 10000W
Rated output voltage: 220/230/240Vac
Rated frequency: 50/60Hz
Output Waveform: Pure sine wave
Output method: Pluggable connector
Operating temperature range: 0~55℃
Storage temperature range: -15℃~60℃
Humidity: 5%~95%
Working Conditions
Cooling Method: Air cooling
Weight: 87kg
Size: 530*870*160mm
IP Class: IP20
Installation method: Wall mounting type
Communication port: RS485/WIFI (Optional)
