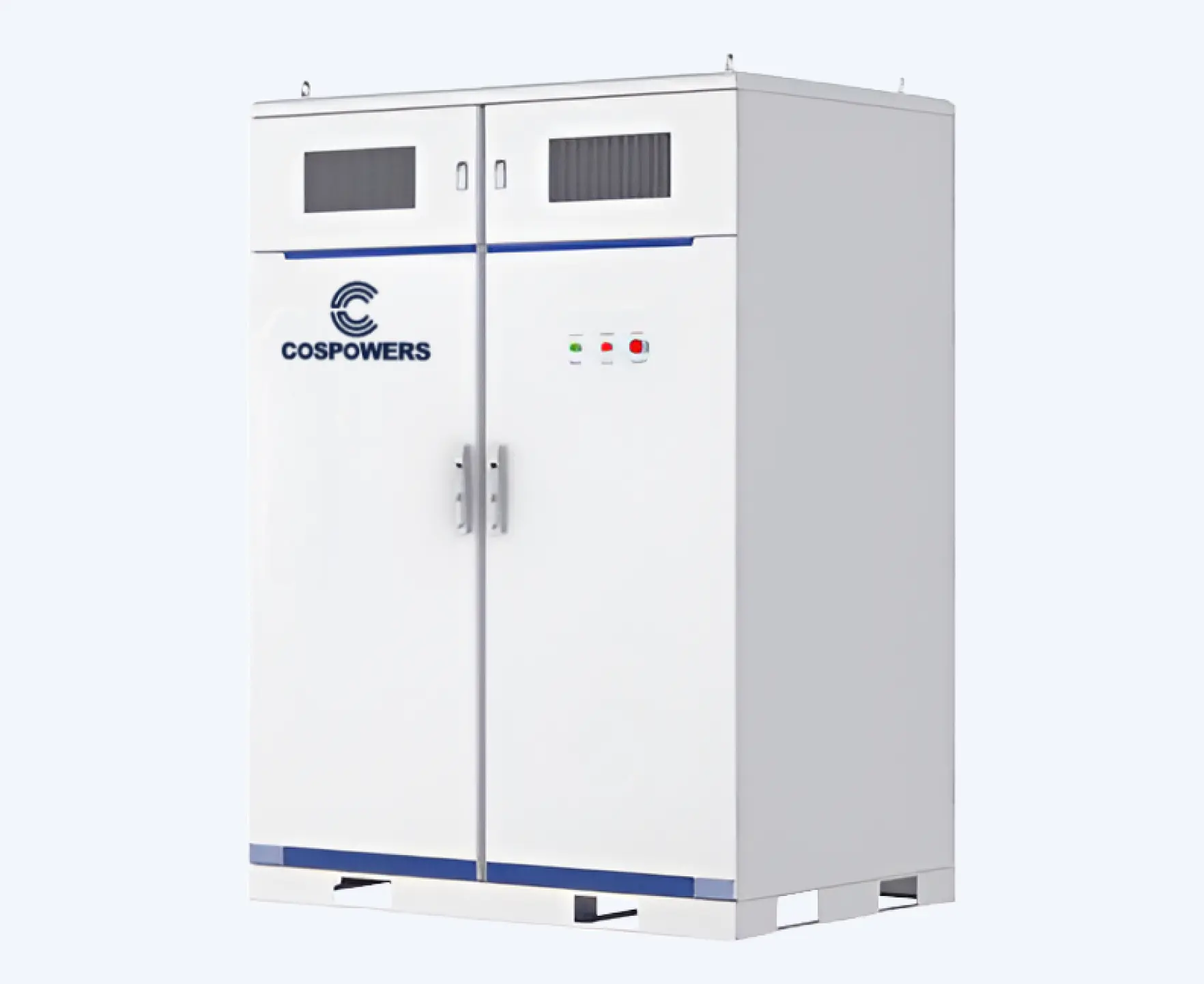

CP Pontus: Up to 224kWh Air Cooled Battery Storage

Store up to 224kWh with air cooling. Ideal for EV charging, office buildings, and agriculture. Features integrated AC/DC design and cloud maintenance.

Storage Capacity: Up to 224kWh
Cooling Technology: Advanced air cooling
Design: Highly integrated AC and DC systems
Monitoring: Fingertip monitoring with cloud maintenance

Technical Details

100kW/224kWh AIR-COOLING LITHIUM BATTEY ENERGY STORAGESYSTEM CABINET

DC side parameter

DC branch: 1 channel
DC busbar maximum voltage: 1000V
DC side maximum current: 165A
DC voltage operating range: 650~1000V

AC grid connection parameter

Maximum input apparent power: 100kVA
Maximum input active power: 100kW
Rated input voltage: 220/380V,3P4W+PE
Maximum continuous input current: 152A
Rated input frequency: 50Hz

AC off-grid parameter

AC off-grid voltage: 220/380V,3P4W+PE
Maximum continuous output current: 152A
AC off-grid frequency: 50Hz

Battery parameters

Battery Type: LFP
Rated capacity: 224kWh
Nominal voltage: 748.8V
Operating voltage range: 655~819V
Charge/Discharge Rate: ≤0.5C

System parameters

HMI: 8 inch LCD touch screen
Fire protection system: Perfluorhexone fire protection
Cooling Method: Air cooling
Operating temperature: 0℃~55℃
IP Class: IP54
Size: <1600*1100*2200mm
Weight: <2500Kg
Certificates: CANS,CMA
