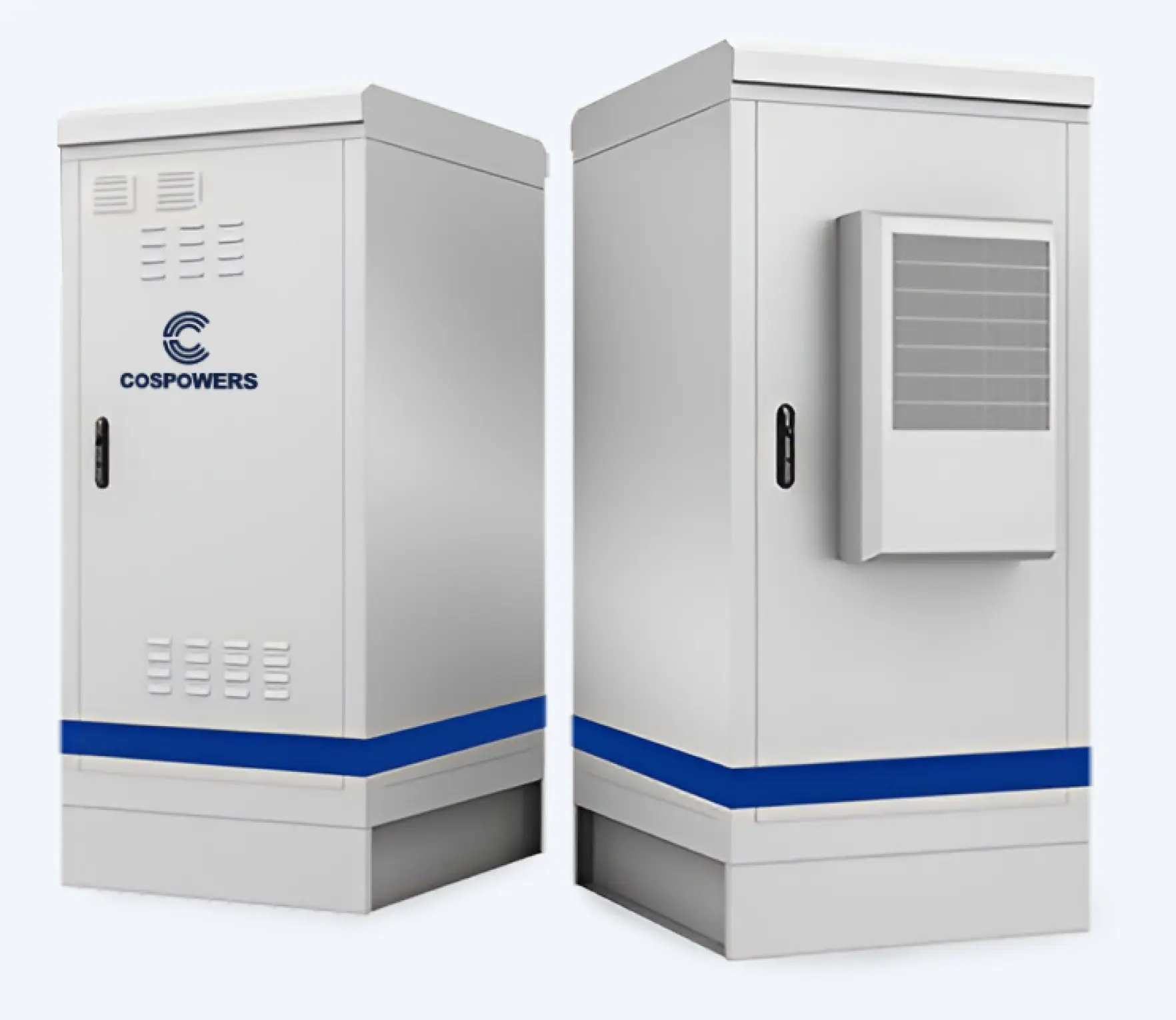

Solar Energy Input

• Maximum DC power: 15000W
• Optimum operating voltage: 120Vdc
• Maximum Input Current: 200A
• MPPT voltage range: 60~150Vdc
• MPPT Number of traced paths: 5

AC Input

• Rated input voltage: 220Vac
• Input Voltage Range: 85~300Vac
• Input Frequency: 50/60Hz
• Max input current limit: ≤55A (Single phase)
• Power factor: >99%

Battery Configuration

• Battery voltage range: 43.2~56Vdc
• Rated battery voltage: 51.2Vdc
• Battery charge/discharge power: 5120W (charge) / 10240W (discharge)
• Max charge/discharge current: 100A (charge) / 200A (discharge)
• Communication method: RS485

DC Output (3 Channels)

• Output DC voltage range: 42~58Vdc
• Output DC voltage: 54.0Vdc
• Output DC current: 0~200A
• Output efficiency: ≥96% Pure electric mode, ≥95% Pure solar mode

Inverter AC Output (1 Channel)

• Output AC voltage: 220Vac ±2%
• Output frequency: 50/60Hz ±1
• Max output power: 4500W

Application Environment

• Operating temperature: -10~+50℃
• Operating altitude: <2000m
• Storage temperature: -20~+60℃
• Relative humidity: 5%~90%RH
• Noise: <30dB

System Parameters

• Size: 750*750*1671.5mm
• IP Class: IP43
• Cooling Method: Temperature controlled heat dissipation
• Installation method: Install on ground
• Communication method: WIFI, RS485
