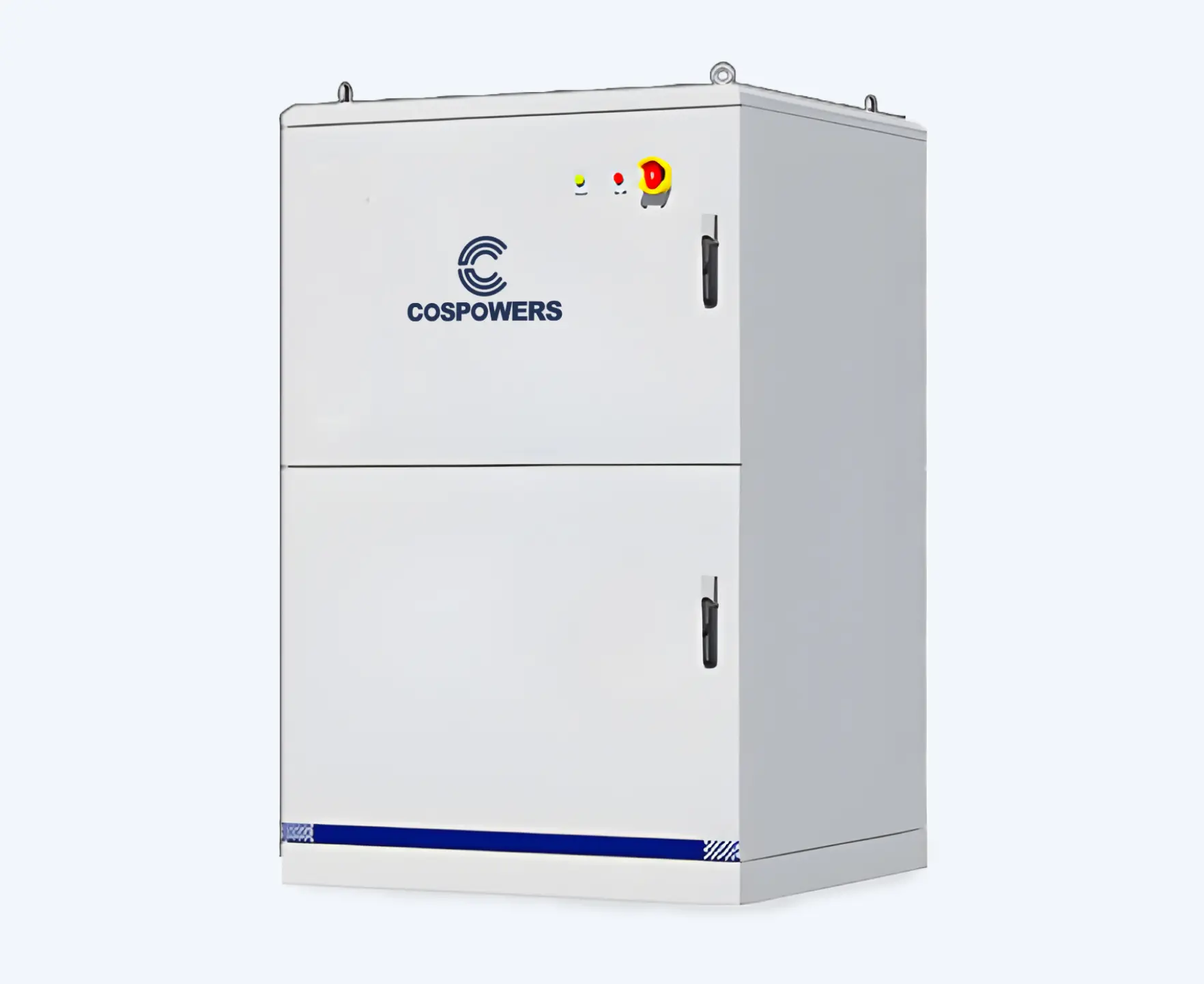

CP Venus: Up to 103kWh Air Cooled Battery Storage

Store up to 103kWh with air cooling. Ideal for EV charging, office buildings, and agriculture. Features integrated AC/DC design and cloud maintenance.

  • Storage Capacity: Up to 103kWh
  • Cooling Technology: Advanced air cooling
  • Design: Highly integrated AC and DC systems
  • Monitoring: Fingertip monitoring with cloud maintenance
    • Get the brochure
    Contact us

    Technical Details

    50kW/103kWh AIR-COOLING LITHIUM BATTEY ENERGY STORAGESYSTEM CABINET

    DC side parameter

    • DC branch: 1 channel
    • DC busbar maximum voltage: 1000V
    • DC side maximum current: 88A
    • DC voltage operating range: 200~900V

    AC grid connection parameter

    • Maximum input apparent power: 50kVA
    • Maximum input active power: 50kW
    • Rated input voltage: 220/380V,3P4W+PE
    • Maximum continuous input current: 86A
    • Rated input frequency: 50Hz

    AC off-grid parameter

    • AC off-grid voltage: 220/380V,3P4W+PE
    • Maximum continuous output current: 86A
    • AC off-grid frequency: 50Hz

    Battery parameters

    • Battery Type: LFP
    • Rated capacity: 103kWh
    • Nominal voltage: 345.6V
    • Operating voltage range: 302~378V
    • Charge/Discharge Rate: ≤0.5C

    System parameters

    • HMI: 8 inch LCD touch screen
    • Fire protection system: Perfluorhexone fire protection
    • Cooling Method: Air cooling
    • Operating temperature: 0℃~55℃
    • IP Class: IP54
    • Size: <1200*1100*1850mm
    • Weight: <1200Kg
    • Certificates: CANS,CMA
